Quick Start Guide for GPUmonty

GPUmonty is a high-performance, CUDA-accelerated Monte Carlo radiative transfer (MCRT) code designed for the spectral modeling of accreting black holes based on igrmonty.

Prerequisites

Before compiling, ensure your system has the following libraries installed and accessible:

  • CUDA Toolkit: Required for the nvcc compiler and GPU kernels (Install Guide).

  • GNU Scientific Library (GSL): Required for various mathematical and statistical routines (GSL Home).

  • Hierarchical Data Format v5 (HDF5): Required for reading GRMHD simulation snapshots (HDF5 Home).

Environment Configuration

Locate the installation paths for these libraries on your system and update the corresponding variables in the Makefile:

CUDA_PATH      = /usr/local/cuda
GSL_PATH       = /usr/local
HDF5_INCLUDE   = /usr/include/hdf5/serial
HDF5_LIB       = /usr/lib/x86_64-linux-gnu/hdf5/serial

Note

The makefile is set to automatically find the compute capability of your GPU.

Compute capability refers to the CUDA architecture version of your GPU (e.g., sm_86 for Ampere), which determines which GPU instructions and optimizations are used during compilation.

In case you want to do it yourself, set `AUTO_CC ?= 0` and look for the compute capability on Nvidia’s website.

After you have changed these settings, compile by typing:

make -j 15

In case you want to compile for debugging, use:

make BUILD_TYPE=debug

CUDA Number of Blocks Configuration

The build system includes an auto-tuning feature that detects the hardware specifications of the GPU on your current machine (specifically Device 0).

During compilation, the Makefile triggers a probe (defined in GetGPUBlocks.mk) that calculates the optimal number of blocks based on the GPU’s multiprocessor count and blocks-per-multiprocessor limit. This process automatically updates the N_BLOCKS definition located in:

src/config.h

By default, this feature is enabled. If you wish to manually set N_BLOCKS to a fixed value in the config file, you can disable the auto-tuner by setting the GPU_TUNING flag to 0:

make BLOCK_TUNING=0

Warning

If you are running on a High Performance Computing (HPC) cluster, do not compile on the login/head node, as these nodes often lack GPUs or possess different hardware than the compute nodes. To ensure the auto-tuner detects the correct GPU architecture for your run, we recommend adding the compilation step directly inside your job submission script (e.g., Slurm or PBS script).

Multi-Core Acceleration (OpenMP)

GPUmonty benefits from OpenMP for CPU-bound tasks such as data pre-processing and grid initialization. To enable multi-threaded CPU execution:

export OMP_NUM_THREADS=XX

Replace XX with the desired number of threads (recommended: number of physical CPU cores).

Configuration Parameters

Simulation parameters are passed to the executable via a .par file. You can find a baseline configuration in /gpumonty/template.par.

To run a simulation with your custom parameters:

./gpumonty -par path/to/your_file.par
Runtime Parameters

Parameter

Description

Ns

Superphoton Count: The approximated total number of photon packets to be generated.

dump

Data Path: Relative or absolute path to the input GRMHD data file.

spectrum

Output Name: Filename for the output spectral data (e.g., sane.spec).

MBH

Black Hole Mass: Mass of the central black hole in Solar Masses (\(M_\odot\)).

M_unit

Mass Unit Scale: Normalization factor (in grams) to scale dimensionless GRMHD density to physical CGS units.

tp_over_te

Proton-to-Electron Temperature Ratio: Constant ratio (\(T_p/T_e\)) used if a dynamic heating model is not active.

Thetae_max

Temperature Ceiling: Numerical cap for the dimensionless electron temperature (\(\Theta_e = k_B T_e / m_e c^2\)).

scattering

Boolean for Scattering: Enable or disable scattering processes in the simulation.

Analyzing the Output

To facilitate data post-processing and visualization, an example Jupyter Notebook is provided in the repository.

  • Notebook Location: python/example.ipynb

  • Workflow: This tutorial guides you through opening output files, extracting spectral arrays, and generating plots.

Spectral Data Structure

When analyzing the raw results in Python, please note the relationship between luminosity and the observer’s viewing angle:

  • Indexing: The luminosity array (nuLnu) is multi-dimensional; each index in the array corresponds directly to one of the theta_bins defined in your simulation.

GRMHD Data File for Testing

To reproduce tests using the same GRMHD input employed in the GPUmonty paper, download the dataset from Prather et al. (2023) via the Harvard Dataverse:

After downloading, place the GRMHD data file in the data/ directory and run:

./gpumonty -par template.par

The resulting spectrum should match the expected output shown below:

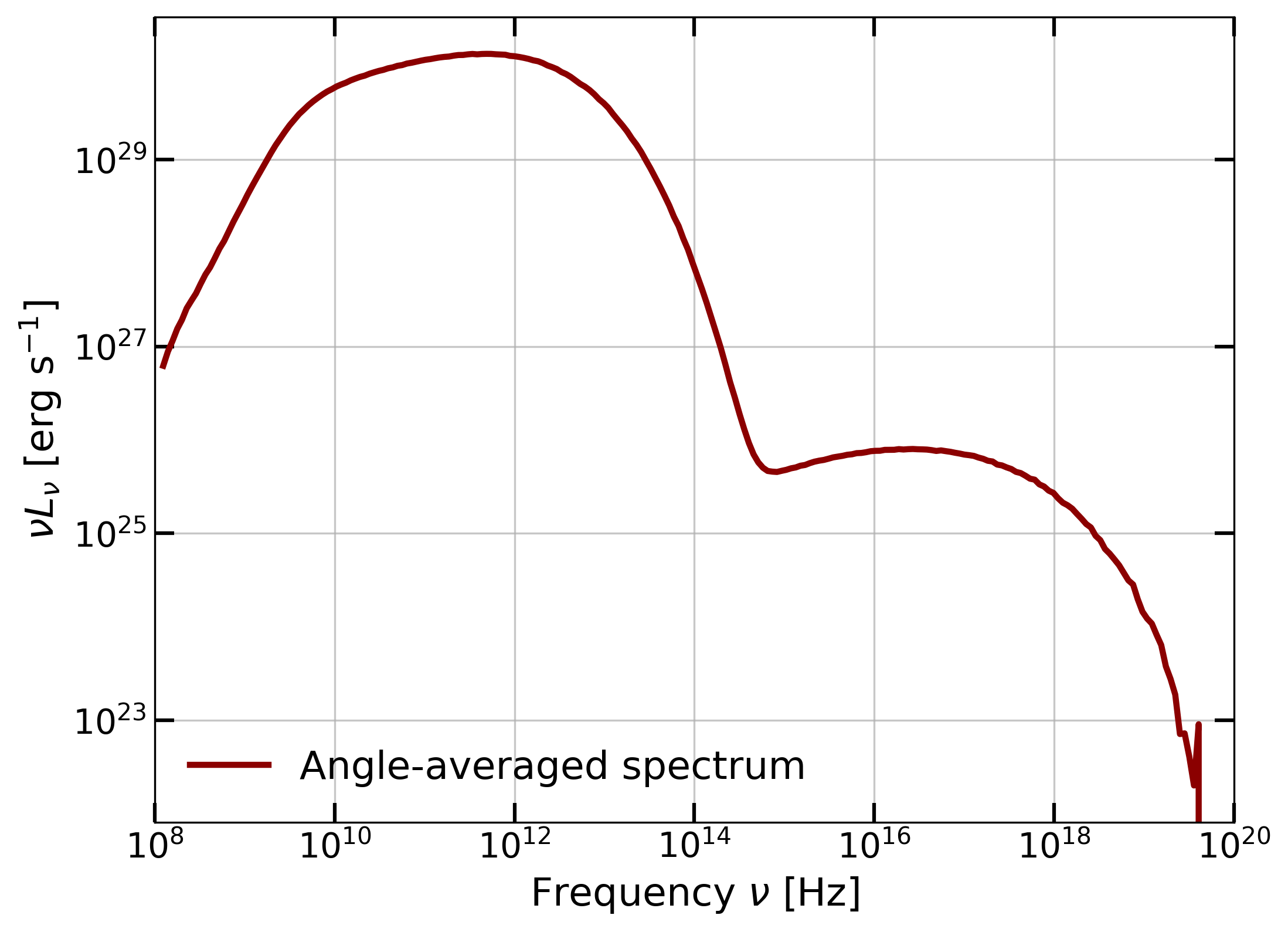

Expected spectrum output for GPUmonty

Expected Result: The resulting spectrum showing the \(\nu L_\nu\) distribution across frequencies.

LICENSE

GPUmonty is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 2 of the License, or (at your option) any later version.

See the GNU General Public License for more details.
